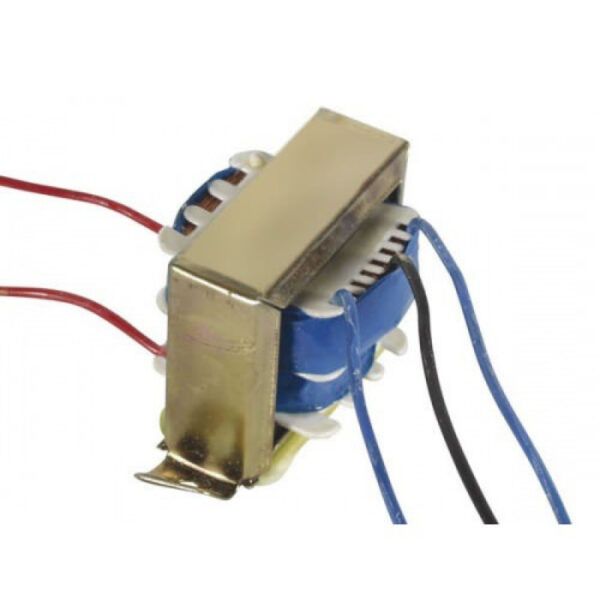

9-0-9 9V 3A Center Tapped Step Down Transformer

9-0-9 3A Center Tapped Step Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and center-tapped secondary winding. The transformer has flying-colored insulated connecting leads ( Approx 100 mm long ). The Transformer acts as a step-down transformer reducing AC – 230V to AC – 9V. The Transformer gives outputs of 9V, 9V, and 0V. The Transformer’s construction is written below with details of Solid Core and Winding. The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high-permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding. Specifications of 9-0-9 3 Ampere Center Tapped Transformer:- Input Voltage:         230V AC Output Voltage:         9V, 9V or 0V Output Current:         3 Amp Mounting:                 Vertical mount type Features of 9-0-9 3 Ampere Center Tapped Transformer:- Soft Iron Core. 3 Amp Current Drain. Applications of 9-0-9 3 Ampere Center Tapped Transformer:- DIY projects Requiring In-Application High current drain. On chassis AC/AC converter. Designing a battery Charger. SKU: RM006346 Category: Transformers Warehouse Code: R00039-S02-P03-Z04
