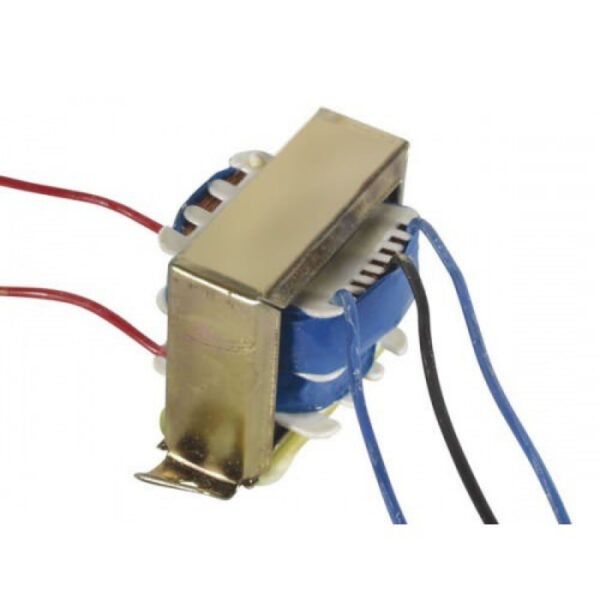

18-0-18 18V 1A Center Tapped Step Down Transformer

18-0-18 1A Center Tapped Step Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and center-tapped secondary winding. The transformer has flying-colored insulated connecting leads ( Approx 100 mm long ). The Transformer act as step-down transformer reducing AC – 230V to AC – 18V. The Transformer gives outputs of 18V, 18V and 0V. The Transformer’s construction is written below with details of Solid Core and Winding. The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high-permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding. Specifications of 18-0-18 1 Ampere Center Tapped Transformer:- Input Voltage:         230V AC Output Voltage:         18V, 18V or 0V Output Current:         1Amp Mounting:                 Vertical mount type Features of 18-0-18 1 Ampere Center Tapped Transformer:- Soft Iron Core. 1Amp Current Drain. Applications of 18-0-18 1 Ampere Center Tapped Transformer:- DIY projects Requiring In-Application High current drain. On chassis AC/AC converter. Designing a battery Charger. SKU: RM003441 Category: Transformers Warehouse Code: R00027-S03-P04-Z01
